Home Products NC357 Digital Creasing / Perforation Machine
EnvironmentTemperat
EnvironmentTemperat
COD not available
Digital Creasing Machine

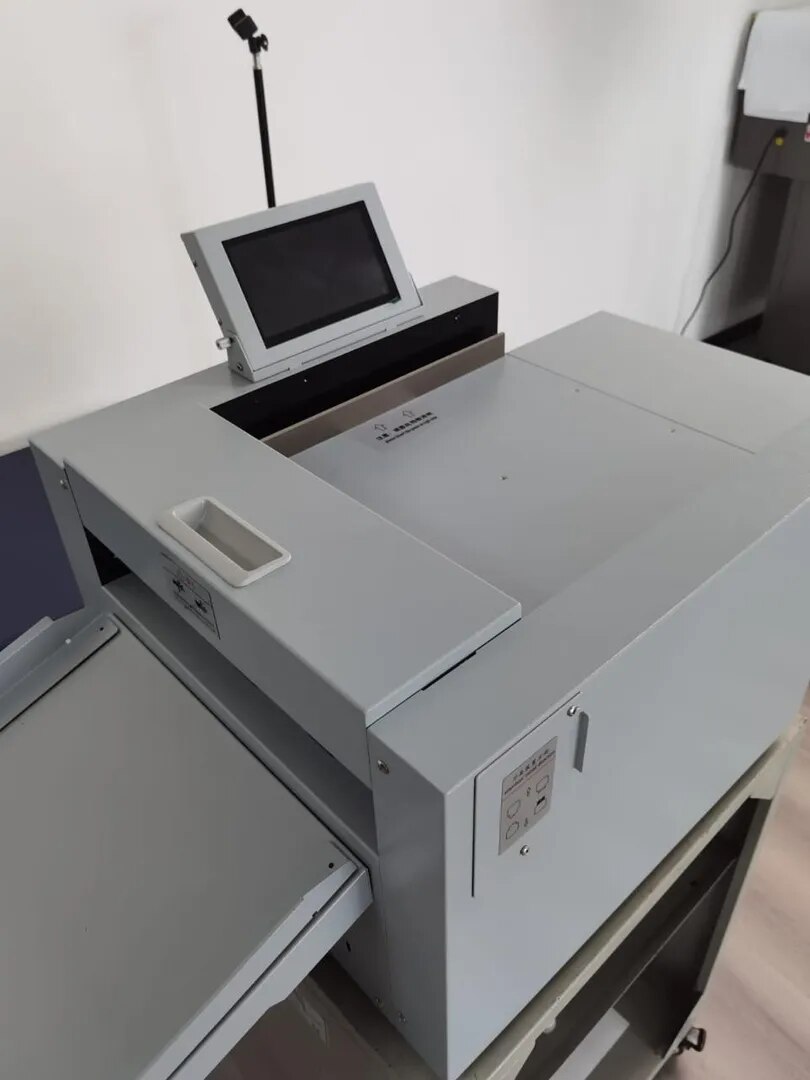

NC357 Digital Creasing / Perforation Machine

INR 1
Share with
Share this on :

Description

Product details

Environment Temperature: 10°C to 35°C Humidity: 30% to 70% Altitude: below 1000m There is no corrosiveness gas, flammable gas, oil mist and so on in Specification Paper size:50*90mm (Min.), 330*1200mm (Max.) Paper thickness:60-350g/㎡ (crease), 60-300g/㎡ (perforation) Paper type:Coated paper, Laminated paper, Varnish paper etc. Working precision:±0.2mm Working speed:4800pcs/hour (one crease on each A4 paper) Creasing times in each paper:0-36 times Voltage:220V/50Hz OR 110V/60Hz Power400W G.W52KGS

Keywords

Other Products

Related Products

Features Cutting thickness is 80mm. Infrared for safety operation. Man-machine interface design, 100 groups*96 cuts program. Back platform without groove design, overhanging ball screw push paper more stable. Patent for oblique cutting paper, cutting more easily, suitable for thick paper cutting. With floating balloon, 8 mm hard aluminium plate with chromium, more durable. Push book platform can be folded, convenient transportation. Dual hydraulic power control system, Paper pressure external regulating mechanism. Mechanical foot, cut riding nail book pre- alignment more convenient, higher precision. Specification Max. Cutting Length:520 mm Min. Cutting Length:30 mm Cutting Thickness:80 mm Cutting Precision:± 0.2 mm Clamping Mode:Hydraulic+Mechanical Pedal Front Platform:10 mm Hard Aluminium Bed Display:7.0
View Details
H520T V7 Hydraulic Paper Cutting Machine

INR1

Features Good Quality touch screen Infrared grating safe Mechanical foot Pedal Front and back plate with air ball Double guide device: the paper pusher adopts imported double linear guide and roller ball screw , which can prolong the machine use life , and can bear the high speed paper delivering Whole heavy chasis make machine durable Heavy duty design with thick steel plate. Heavy duty casting body Mechanical hydraulic system Heavy duty knife holder Specification Max Cut Size : 530mm Min Cut Size : 45mm Max Cut Height : 80mm Cutting Precision : ±0.3mm Mode of Clamp : Hydraulic Mechanical Mode of Cutting : Hydraulic Mode of Pushing : Motor pushing Program : Program control(100*7 programs) Display : 7 inches Power : AC 220V ±10% , 50Hz Gross Weight :550 Kg
View Details
JH 530 Hydraulic Paper Cutting Machine

INR1

Features Thickened whole structure, thickened the blade carrier, more durable. Thicken aviation aluminium plate with ball table, easy feeding the paper. Push book platform can be folded, convenient transportation 7 inch touch screen, easy to operate. 100groups*96steps program for repeat cuts. Cutting thickness is 80mm. Top ball screw, more accurate for cutting. Push paper size error compensation function, program correction size error, easy to adjust. Auto push book, guided on both sides for pushing paper. Electronic hand wheel for backgauge position with variable speed. Adjust blade outside of machine. Specification Max. Cutting Length:670 mm Min. Cutting Length:30 mm Cutting Thickness:80 mm Cutting Precision:± 0.2 mm Clamping Mode:Hydraulic+Mechanical Pedal Front Platform:10 mm Hard Aluminium Bed Display:7.0
View Details
H670T V7 Hydraulic Paper Cutting Machine

INR1
